Tubular fine bubble diffusers and membrane disc fine bubble diffusers are both widely used aeration devices in wastewater treatment systems. Their core function is the same: to release fine air bubbles into wastewater, increasing the gas–liquid contact area and improving oxygen transfer efficiency.
However, despite this shared purpose, the two diffuser types differ significantly in structure, application scenarios, performance characteristics, and maintenance requirements.
Tubular fine bubble diffusers feature a long, cylindrical shape, typically ranging from 0.5 to 2 meters in length and 50–100 mm in diameter. The flexible membrane is wrapped around a rigid tubular support, allowing aeration to occur continuously along the length of the tube.
In practical installations, multiple tubular diffusers are arranged in parallel on the tank floor and connected through manifold piping in series or parallel, forming a continuous aeration zone.

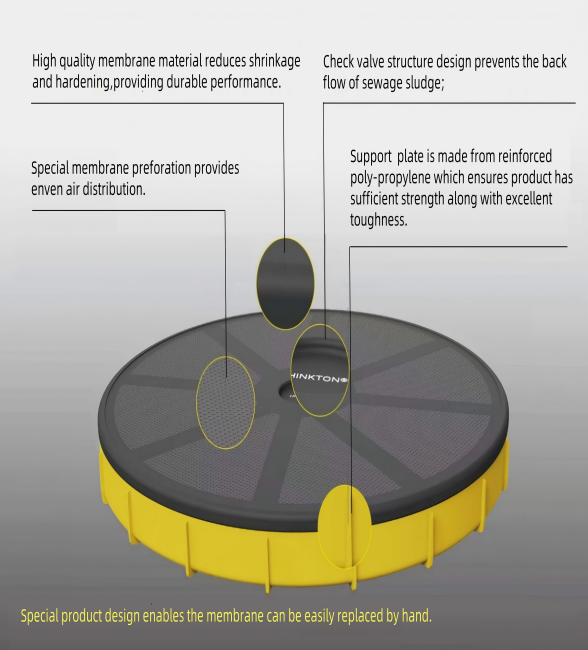

Membrane disc diffusers, in contrast, have a circular, disc-shaped design, most commonly with diameters between 200 and 300 mm. The membrane is fixed onto a round diffuser body, and aeration is concentrated within the disc area.
Each disc diffuser is installed as an individual unit, evenly distributed across the tank bottom to achieve uniform oxygen delivery.
Due to their linear aeration pattern, tubular diffusers create a continuous “line” or “strip” of fine bubbles, resulting in very uniform airflow distribution. They are particularly well suited for large, rectangular aeration tanks such as oxidation ditches and long plug-flow basins commonly found in municipal wastewater treatment plants.
Because each diffuser covers a relatively large area, fewer units are required per tank, which can simplify installation and reduce maintenance effort. Tubular diffusers are therefore often preferred in high-flow, high-load applications, including municipal sewage and large-scale industrial wastewater treatment.
Disc diffusers, on the other hand, provide aeration in discrete “points.” Uniform aeration is achieved by distributing multiple discs across the tank floor. This design is more suitable for small to medium-sized tanks, as well as square or circular basins, such as those used in industrial wastewater treatment plants or pilot and laboratory systems.
Disc diffusers are less sensitive to minor unevenness in the tank floor, and localized failure has minimal impact on overall system performance. This makes them ideal for applications requiring flexible layout and easier localized maintenance.
Both tubular and disc fine bubble diffusers offer high oxygen transfer efficiency (OTE), typically in the range of 20–30%, depending on operating conditions, membrane material, and air flow rate.
That said, tubular diffusers often demonstrate more stable oxygen transfer in large tanks due to their continuous aeration zone, which helps reduce bubble coalescence. In large-scale systems, this can translate into better energy efficiency and more consistent process performance.
Disc diffusers, with their modular and distributed layout, allow for precise aeration control in smaller tanks. By optimizing diffuser placement and airflow distribution, energy losses can be minimized, and system operation can be adjusted more flexibly to match changing process demands.
Maintenance requirements differ notably between the two diffuser types.
If a tubular diffuser is partially damaged—such as a section of the membrane or tube—this may affect the performance of the entire diffuser line. Inspection and replacement often involve checking interconnected pipework, and maintenance may require coordinated shutdown of multiple diffusers.
In contrast, disc diffusers are highly modular. A damaged or fouled disc can be replaced individually without significantly affecting the operation of surrounding units. This makes disc diffusers easier to maintain and particularly suitable for systems that require frequent localized inspection or repair.
In summary, tubular fine bubble diffusers are generally favored for large-scale, high-load wastewater treatment applications where uniform aeration, reduced diffuser count, and operational stability are critical. Membrane disc diffusers, meanwhile, offer greater flexibility, easier maintenance, and suitability for smaller or irregularly shaped tanks.
The final selection should be based on tank geometry, treatment capacity, operational priorities, and long-term maintenance strategy.
